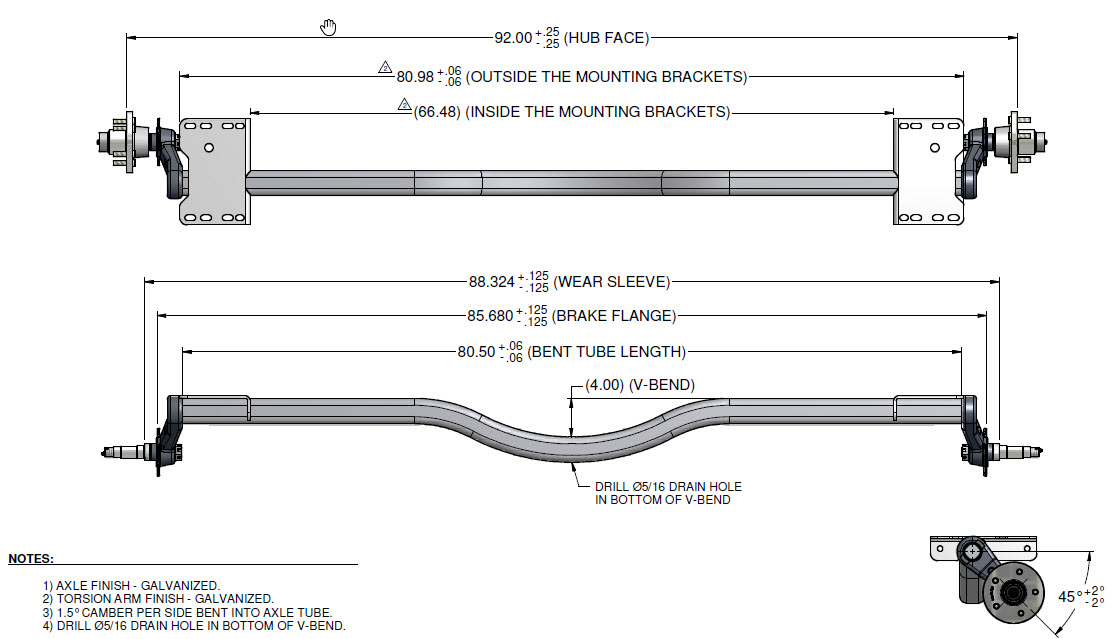

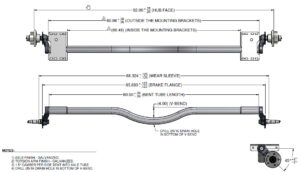

Hub Face: 92"
Outside the Mounting Brackets: 80.73"
Inside the Mounting Brackets: 66.23"
Bent Tube Length: 80.48"
Brake Flange to Brake Flange: 85.68"
Camber: 1.5 degree per side
Bent/Straight: 4" V-drop
Assembled with 1750lb. 545 Vortex hubs. Vortex hubs come with a high performance 6 year/100,000 mile "no touch" lubrication system. No maintenance or service required therefore lowered operating costs. No need for periodic re-greasing or inspection. Reusable dust cap is threaded for easy removal should the need occur. See the attached information sheet regarding Vortex hubs.
*Lucas Oil premium marine grease is required when adding or replacing grease or the warranty is voided.20054
