Pontoon Trailers
Venture Pontoon Trailers support a range of pontoon boat sizes. Select single or tandem axle, depending on your transport needs, boat size and load carrying capacity. Each trailer is made from hot dipped galvanized steel to support your boat from travel to launch.
Benefits of a Pontoon Trailer

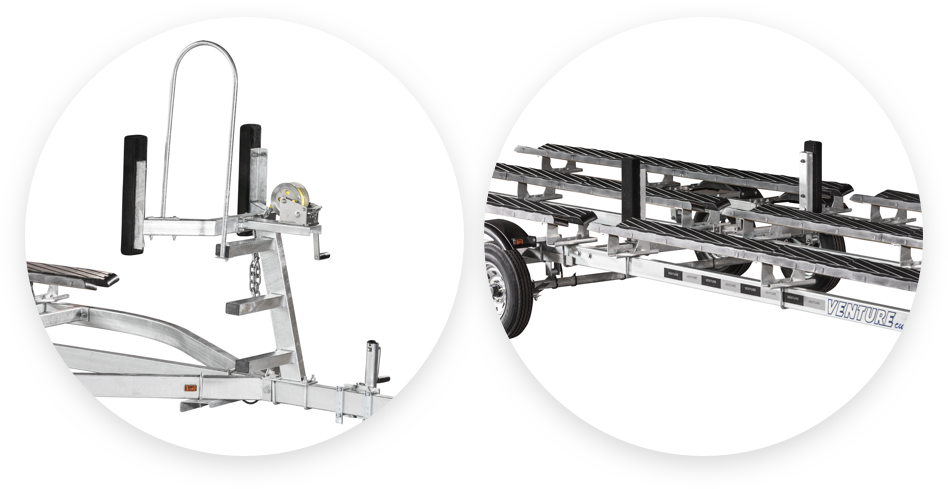

- Ladder with safety handrail
- Poly bunk sleeve
- Inside Load Guides
- Hot dip galvanizing provides excellent corrosion resistance, season after season
- Tubular frame design protects light wiring and brake lines from damage
Each trailer comes with the Tredit Advantage Program, which includes 24/7 emergency service, vehicle theft recovery incentive, lost/stolen key service and more.
Standard Features on Venture Trailers*
- Plug & Play Lights
- Aluminum Diamond Plate Fenders
- Heavy Duty Winch Straps
- D.O.T. Composite Brake Line with Brass Fittings
- Balanced Radial Tires
- Eliminator GalvX Vented Rotor Disc Brakes
- Super Lube Spindles
- Wheel Balancing
- Galvanized Hardware, U-bolts, Winch Stand, Axles, Tongue
- ...and many other components

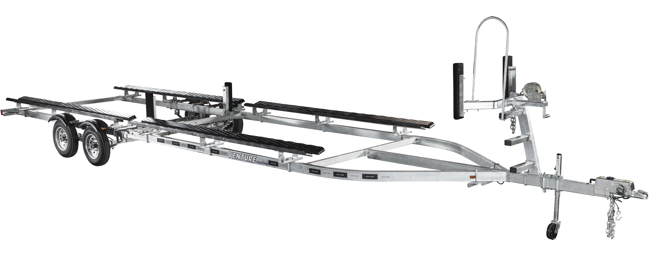

Galvanized Pontoon Trailers
Horizontal scrolling is enabled on the table below.
| Model | Capacity | *Boat Length | Overall Length | Bow Eye to Transom Minimum | Bow Eye to Transom Maximum | Minimum Ctr to Ctr Bunk Width | Maximum Ctr to Ctr Bunk Width | GVWR | Tongue Jack | # of Axles | Brakes | Tire Size | Overall Width | Between Fenders |
| VPT-24-30 | 3000 | 23'-24' | 30'4" | 20' | 24' | 72" | 80" | 4140 | Single Wheel | 2 | Disc-1 | 5.30 x 12 LRC 5H | 98" | 78" |
| VPT-24-40 | 4000 | 23'-24' | 30'4" | 20' | 24' | 72" | 80" | 5140 | Single Wheel | 2 | Disc-1 | ST175/80R 13" LRC | 98" | 78" |
| VPT-26-30 | 3000 | 24'-26' | 31'10" | 20' | 26' | 72" | 80" | 4160 | Single Wheel | 2 | Disc-1 | 5.30 x 12 LRC 5H | 98" | 78" |
| VPT-26-40 | 4000 | 24'-26' | 31'10" | 20' | 26' | 72" | 80" | 5160 | Single Wheel | 2 | Disc-1 | ST175 80D 13LRC | 98" | 78" |
| VPT-26-50 | 5000 | 24'-26' | 31'10" | 20' | 26' | 72" | 80" | 6160 | Single Wheel | 2 | Disc-1 | ST185 80D 13LRD | 98" | 78" |

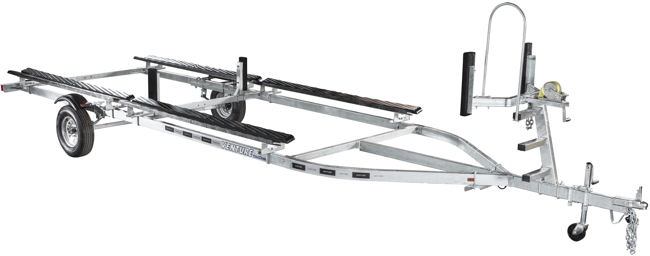

Horizontal scrolling is enabled on the table below.
| Model | Capacity | *Boat Length | Overall Length | Bow Eye to Transom Minimum | Bow Eye to Transom Maximum | Minimum Ctr to Ctr Bunk Width | Maximum Ctr to Ctr Bunk Width | GVWR | Tongue Jack | # of Axles | Brakes | Tire Size | Overall Width | Between Fenders |
| VP-20-20 | 2000 | 18'-21' | 25' 3" | 19' | 21' | 72" | 80" | 2780 | Optional | 1 | Optional | ST185 80D 13LRC | 98" | 78" |
| VP-24-20 | 2000 | 22'-24' | 30'4" | 20' | 24' | 72" | 80" | 2940 | Optional | 1 | Optional | ST185 80D 13LRD | 98" | 78" |
| VP-20-25 | 2500 | 18'-21' | 25' 3" | 19' | 21' | 72" | 80" | 2995 | Optional | 1 | Optional | ST185 80D 13LRD | 98" | 78" |
| VP-24-25 | 2500 | 22'-24 | 30'4" | 20' | 24' | 72" | 80" | 3440 | Optional | 1 | Optional | ST185 80D 13LRD | 98" | 78" |
