Tritoon Trailers
Our tritoon boat trailers are made from hot dipped galvanized steel to provide the strongest support for your tri-toon pontoon boat. You can count on our durable design and high quality materials to haul your boat. Choose from our line of tritoon trailers that will fit your length and weight needs.
Benefits of Tritoon Boat Trailers
- Ladder with safety handrail
- Poly bunk sleeve
- Inside Load Guides
- Hot dip galvanizing provides excellent corrosion resistance, season after season
- Tubular frame design protects light wiring and brake lines from damage
Each trailer comes with the Tredit Advantage Program, which includes 24/7 emergency service, vehicle theft recovery incentive, lost/stolen key service and more.
Standard Features on Venture Trailers*
- Plug & Play Lights
- Aluminum Diamond Plate Fenders
- Heavy Duty Winch Straps
- D.O.T. Composite Brake Line with Brass Fittings
- Balanced Radial Tires
- Eliminator GalvX Vented Rotor Disc Brakes
- Super Lube Spindles
- Wheel Balancing
- Galvanized Hardware, U-bolts, Winch Stand, Axles, Tongue
- ...and many other components
Galvanized Tritoon Trailers
Horizontal scrolling is enabled on the table below.

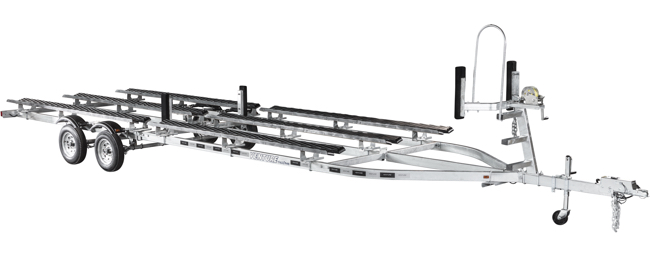

| Model | Capacity | *Boat Length | Overall Length | Front Deck to Transom Minimum | Front Deck to Transom Maximum | Minimum Ctr to Ctr Bunk Width | Maximum Ctr to Ctr Bunk Width | GVWR | Tongue Jack | # of Axles | Brakes | Tire Size | Overall Width | Between Fenders |
| VPT-22-40TRI | 4000 | 20'-22' | 28'4" | coming soon | coming soon | 72" | 80" | 5200 | Single Wheel | 2 | Disc-1 | ST175 80R 13LRC | 98" | 78" |
| VPT-24-30TRI | 3000 | 22'-24' | 30'4" | 20' | 24' | 72" | 80" | 4200 | Single Wheel | 2 | Disc-1 | 5.30 x 12 LRC 5H | 98" | 78" |
| VPT-24-40TRI | 4000 | 22'-24' | 30'4" | 20' | 24' | 72" | 80" | 5220 | Single Wheel | 2 | Disc-1 | ST175/80R 13" LRC | 98" | 78" |
| VPT-26-40TRI | 4000 | 24'-26' | 31'10" | 20' | 26' | 72" | 80" | 5240 | Single Wheel | 2 | Disc-1 | ST175 80R 13LRC | 98" | 78" |
| VPT-26-50TRI | 5000 | 24'-26' | 31'10" | 20' | 26' | 72" | 80" | 6240 | Single Wheel | 2 | Disc-1 | ST185 80R 13LRD | 98" | 78" |
Horizontal scrolling is enabled on the table below.

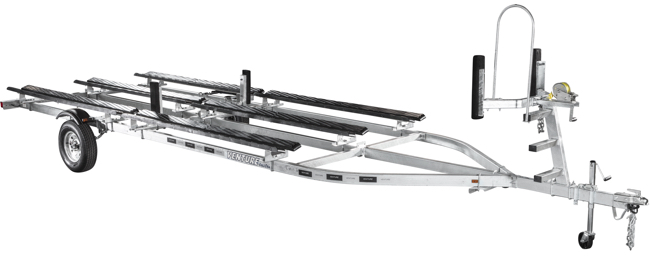

| Model | Capacity | *Boat Length | Overall Length | Front Deck to Transom Minimum | Front Deck to Transom Maximum | Minimum Ctr to Ctr Bunk Width | Maximum Ctr to Ctr Bunk Width | GVWR | Tongue Jack | # of Axles | Brakes | Tire Size | Overall Width | Between Fenders |
| VP-18-20TRI | 2000 | 16'18' | 23'3" | coming soon | coming soon | 72" | 80" | 2840 | Optional | 1 | Optional | ST185 80R 13LRC | 98" | 78" |
| VP-20-20TRI | 2000 | 18'-20' | 25' 4" | 19' | 21' | 72" | 80" | 2860 | Optional | 1 | Optional | ST185 80R 13LRC | 98" | 78" |
| VP-20-25TRI | 2500 | 18'-20' | 25' 3" | 19' | 21' | 72" | 80" | 3075 | Optional | 1 | Optional | ST185 80R 13LRD | 98" | 78" |
| VP-22-25TRI | 2500 | 20'-22' | 28'4" | coming soon | coming soon | 72" | 80" | 3500 | Optional | 1 | Optional | ST185 80R 13LRD | 98" | 78" |
| VP-24-25TRI | 2500 | 22'-24 | 30' 4" | 20' | 24' | 72" | 80" | 3520 | Optional | 1 | Optional | ST185 80R 13LRD | 98" | 78" |
